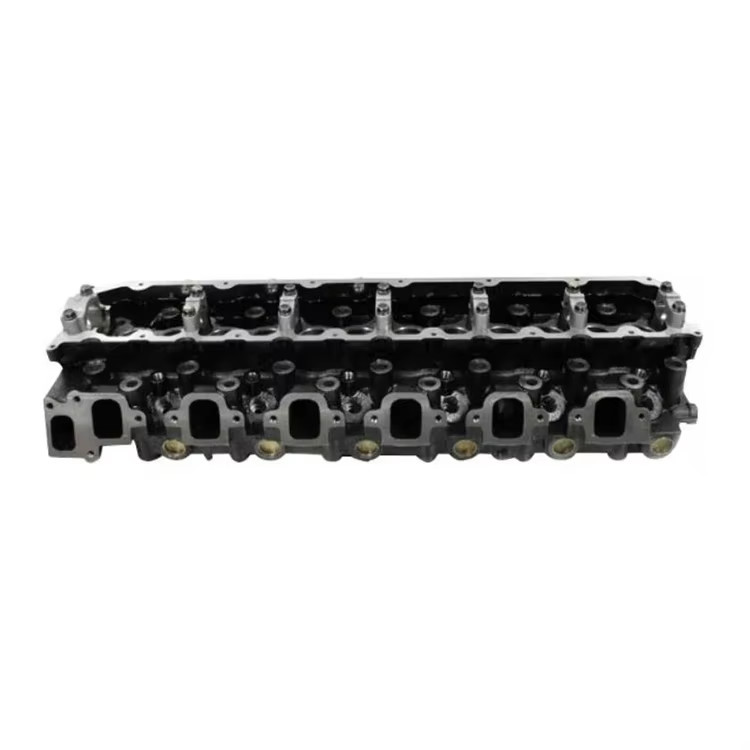

Toyota 4.2T 12V 1HD-T Diesel Engine Cylinder Head Auto Parts For Coaster Land Cruiser Model 11101-17020 1110117020 Engine Parts
The production of diesels of the 1HD series was launched in 1990, then the engine appeared on the Toyota Coaster bus and the Land Cruiser 80 SUV. The 1HD engine turned out to be not only very reliable and not whimsical, but its power indicators are quite impressive. The simplicity of the design allows you to repair and service the motor yourself.
The 1HD-T is a 12 valve 4.2 L (4,164 cc) straight-6 SOHC turbocharged direct injection diesel engine . Bore and stroke is 94 mm × 100 mm (3.70 in × 3.94 in), with a compression ratio of 18.6:1. Output is 164 hp (122 kW; 166 PS) at 3,600 rpm with 361 N⋅m (266 lb⋅ft) of torque at 1,400 rpm.
Toyota 1HD Mods
- 1HD-T – the basic version, the engine had an 8-valve cylinder head and a CT22 turbine, the boost pressure was 0.48 bar, the power was 165 hp;
- 1HD-FT – a modification, production of which began in the mid-90s, received a 16-valve cylinder head, a different camshaft. The turbine pressure increased to 0.62 bar, but the engine had to be clamped due to environmental regulations. Power was 170 HP;
- 1HD-FTE – the latest modification, which received an electronic injection pump, improved cylinder head cooling, a camshaft with a 224/246 phase, a CT20B turbine. Power increased to 202 hp and torque to 400+ Nm;
Product Features:
| Part Name: | Engine cylinder head |
| Engine: | 1HD-T |
| OE No.: | 11101-17020 |
| Application: | TOYOTA Coaster & Land Cruiser |
| Material: | Aluminum Alloy |
| Warranty: | 12 months |
| Packing: | Carton Box Package |
| Advantages: | Own Cylinder Head Plant + One Stop Shopping Center For Engine Parts |
| Payment: | T/T,L/C,Western Union; |
| Delivery: | 3-15 days; |
| How To Supply Correct Products: | Rely On Drawings and OEM standards For Production For Accuracy; |
| Customized Services: | Customized service is supported. We can do it accordingly to drawings or samples. |
Detailed Photos:
Application:
- Coaster, HDB20, January 1990 – January 1993
- Coaster, HDB30, January 1990 – January 1993
- Coaster, HDB50, January 1993 – January 1995
- Land Cruiser, HDJ80, January 1990 – January 1995
Packing:
Transportation:
FAQ:
Q1: Can you produce per the samples?
A: Yes, we can produce as per your samples or technical drawings. We have very professional technical team , We can build the molds and fixtures.
Q2: What is your terms of payment?
A: For stock items , we recommend full payment for fast shipping. If the items need to be produced , T/T 30% as deposit, and rest before delivery.
We'll show you the photos of the products and packages for checking before you pay the balance.
Q3: What is your package?
A: Depends on items , for light heavy goods, We usually pack our goods in neutral brown cartons , if heavy goods or big quantity ,we pack it by pallet or wooden box. Also we can customized package for your band as per your requirements.
Q4: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q5: What is your delivery time?
A: In general, if we have stock ,the goods can be delivered 1-3 days after your payment. If no stock, the specific delivery time will be depended on your order quantity.
Q6: Can you accept sample order?
A: Yes sure. We can supply the sample if we have the parts in stock.
Q7: Do you test all your items before delivery?
A: Yes, we have 100% test before delivery,we have strictly quality control policy.
Q8: Which shipment you can supply?
A: By sea, by air ,by train or by express (DHL, FEDEX ,TNT,UPS,EMS etc.)
